Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | CE |
Model Number: | 1001 |
Minimum Order Quantity: | 50 pieces |
Price: | USD25/piece (>1000pcs) / USD26.5 (50-1000 pcs) |
Packaging Details: | box + maste carton + pallet |
Delivery Time: | 15-21 days |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 200000 sets/month |
Diameter: | DN15-20 (3 Way) , DN8-DN32 (2 Way) | Pressure: | PN16 / 1.6 Mpa / 232 Psi / 16 Bar |
---|---|---|---|
Max Current At Idle: | < 25 MA | Max Current At Full Load: | About 550 MA |
Torque At 3.6V: | > 1.8NM | Open Close Time: | < 8 Seconds |
Valve Body Material: | Brass, Stainless Steel SS304, 316 | Product Name: | Heat Meter Control Ball Valve / Cooling Meter Valves |
High Light: | DN15 water heater ball valve,1.0 Mpa water heater ball valve,DN15 3 wire zone valve |

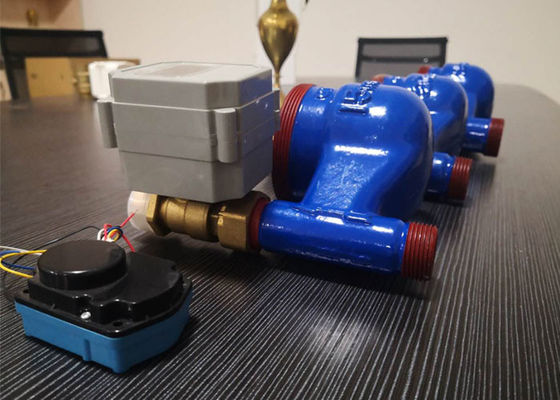

Brass Heat Meter Valves, heating system zone valves, zone control DN15-DN40 | 1.0 Mpa
Product Description
The heating meter or cooling meter can assist with the selection and provision of metering for any Heating system and / or cooling Systems. For which to be added with an extra mini motorized ball valve, or built in a brass ball valves, it'll help to regulate or control the heating & cooling supply, hence it'll improve energy efficiency to reduce unnecessary supply.
Application
Advantages
No | Name | Material | Advantage |
1. | O-ring |
Import fluoro rubber (green) |
Resistance to high temperature, oil, corrosion, chemicals, Work temp.: —30℃+280℃.Quadruple seals, minimize the risk of leakage. |
2. | Drainage | Drain just in case leakage happens | |
4 | 0-ring | EPDM (red) | Between nut and valve body, extra external leak proof, reduce the possibility of internal leak |
8. | Ball | Brass or SS304 | Finely polished, rack nickel plating (not barrel plating), smooth surface, improved torque performance |
9. | Water proof G | Avoid water into housing, seal between valve body and valve housing |
No | Name | Material | Advantages |
5. | Wall thickness | 2.0mm, PN20 | |
6. | Teflon washer | Import teflon |
1. Import teflon tube, numerical processing to perfectly match with ball surface 2. Minimal deformation, polish surface, wearable |
7 | 0-ring | EPDM |
1. Good elasticity, as buffer after Teflon washer to improve seal effect 2. Reasonable structure design, ensures perfect holding margin |
