Green Building, Low Carbon Emission
| Place of Origin: | China |
|---|---|
| Brand Name: | Runpaq |
| Certification: | CE |
| Model Number: | 8055-8007 |
| Minimum Order Quantity: | 50 pieces |
| Price: | USD3/piece (>1000pcs) / USD3.5 (50-1000 pcs) |
| Packaging Details: | box + maste carton + pallet |
| Delivery Time: | 15-21 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 200000 sets/month |
| Diameter: | Two Way: DN15-DN40 | Pressure: | 16 Bar / PN16 / 1.6 Mpa / 225 Psi |
|---|---|---|---|
| Connect: | Female Thread, Male Thread, Female-male Thread | Material: | Brass / Stainless Steel SS304 / 316 |
| Option: | Temperature Sensor Hole | Seal: | Silicon Rubber, PTFE |
| Temperature: | 90 C / 200 C | Product Name: | Motorised Ball Valve |
| High Light: | DN15 Boiler Zone Valve,DN15 boiler control valve,225 psi Boiler Zone Valve |
||

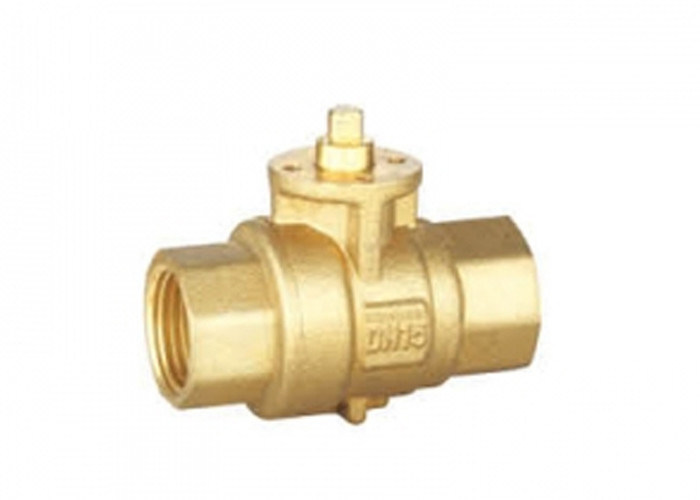

Stainless Heating Control Valve, Boiler Zone Valve, DN15, PN16 DC Actuator Motor
Product Description
The boiler zone valves are installed on the hot side of boiler, or the outside of heating pipe loop. Expose the valve to higher and more stressful temperatures. Zone valves are installed backwards, the ball valve must be installed so that the arrow on the valve body, matches the hot water flow direction.
Features
1. Extreme ong service life span ;
2. Manual Override, the valve can be operated when power failure;
3. Mini dimension and position indicator
4. Good sealing performance, IP65 enclosure
Application
Advantages
| No. | Ours | Normal products |
| Valve shaft seal | Quadruple seals | Dual seals |
| Nut seal | Auto super anaerobic glue coating, Consistent torque tightening | Manual anaerobic glue, unevenly, non consistent torque tightening |
| Seal between valve body and housing | Seal groove | none |
| Torque | Smoothly and light | Heavy, non consistently |
| Drainage | Yes | none |
Technical data
| Material | brass, stainless steel, SS304, 316 |
| Operation pressure | PN16 |
| Type | mini motorised ball valve |
| Operate Pressure (Mpa) | PN10 |
| Torque (NM) | 2 |
| Dia range | DN15-40 |
| Open/close (S) | <13s depends on actuator motor |
| Work volt. (V) | DC3-6V, DC12V, AC220V |
| Media temp (℃) | 0-90 / 200 |
| Control | automatic motor actuator |
