Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | NONE |
Model Number: | TFW1-15 |
Minimum Order Quantity: | 1000 pieces |
Price: | USD14/piece (500-1000 pieces) , USD10.5 (>1000 pieces) |
Packaging Details: | carbon + pallet |
Delivery Time: | 15-21 days |
Payment Terms: | D/P, T/T, L/C, D/A, Western Union |
Supply Ability: | 200000 sets/month |
Valve Body Material: | CASTING, STAINLESS STEEL, BRASS, PLASTIC, UPVC | Work Current: | <100 MA |
---|---|---|---|
Work Voltage: | DC3-6V / DC12V / AC85-230VAC | Pressure Rating: | Low Pressure, Medium Pressure, High Pressure |
Open / Close Time: | <5 S | Torque: | 2 NM |
Power: | 2 W | Protection: | IP65 |
High Light: | 230VAC Temperature Control Valves,motorised Temperature Control Valves,230VAC thermostatic control valve |

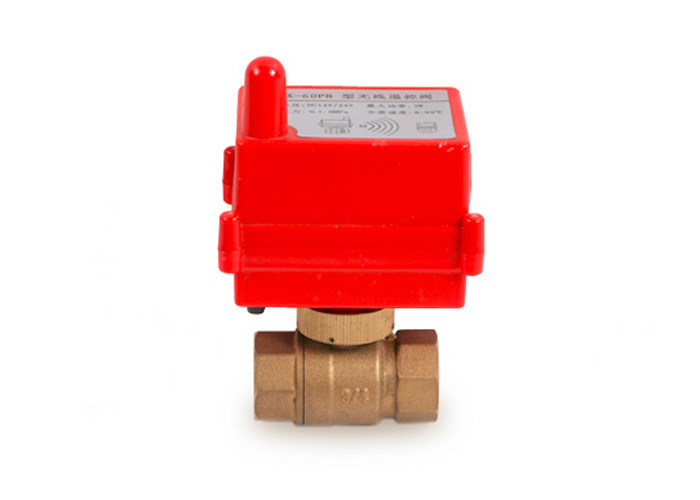

High temperature control valves,auto zone valve for central heating system valve
Product description
The temperature regulating valve systems, are for water and steam commonly used in heating / cooling supply systems. These systems include a temperature control valve with an internal ball check valve to be opened or closed by manually or electric actuator motor. The ball valves for control of the water supply, and a digital thermostat that displays the outlet temperature.
Functions
Controller
Technical introduction
Our advantages
No | Name | Material | Advantage |
1. | O-ring |
Import fluoro rubber (green) |
Resistance to high temperature, oil, corrosion, chemicals, Work temp.: —30℃+280℃.Quadruple seals, minimize the risk of leakage. |
2. | Drainage | Drain just in case leakage happens | |
4 | 0-ring | EPDM (red) | Between nut and valve body, extra external leak proof, reduce the possibility of internal leak |
8. | Ball | Brass or SS304 | Finely polished, rack nickel plating (not barrel plating), smooth surface, improved torque performance |
9. | Water proof G | Avoid water into housing, seal between valve body and valve housing |
No | Name | Material | Advantages |
5. | Wall thickness | 2.0mm, PN20 | |
6. | Teflon washer | Import teflon |
1. Import teflon tube, numerical processing to perfectly match with ball surface 2. Minimal deformation, polish surface, wearable |
7 | 0-ring | EPDM |
1. Good elasticity, as buffer after Teflon washer to improve seal effect 2. Reasonable structure design, ensures perfect holding margin |
Product dimensions
Valve body material | Connection port | Diameter | D | L | H | W |
(mm) | (Kg) | |||||
brass | Both female thread full diameter | DN20 | 20 | 99 | 55 | 0.508 |
DN25 | 25 | 110 | 60 | 0.668 |
Wiring (DC24V)
Applications range
