Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | NONE |
Model Number: | 001-DN15 |
Minimum Order Quantity: | 100 pieces |
Price: | USD5.5 (100-1000 pieces ) / USD4.95 (>1000 pieces) |
Packaging Details: | carton + pallet |
Delivery Time: | 20 - 30 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
Supply Ability: | 200000 sets/month |
Diameter: | DN15-DN40 (1/2" To 1-1/2") | Pressure: | PN16 / 1.6 Mpa / 232 Psi / 16 Bar |
---|---|---|---|
Material: | Brass / Stainless Steel SS304 / 316 | Reflect Mirror: | W Reflect, Z Reflect |
Options: | With Ball Valve Or Without Ball Valve | Warranty: | 10 Years |
Application: | Ultrasonic Water Meter, Heat Meter, Digital Flow Meter | Name: | Ultrasonic Heat Counter Housing, Household Water Meter Pipe |
High Light: | ultrasonic water meter body,dN20 water meter body,dN20 flow meter parts |

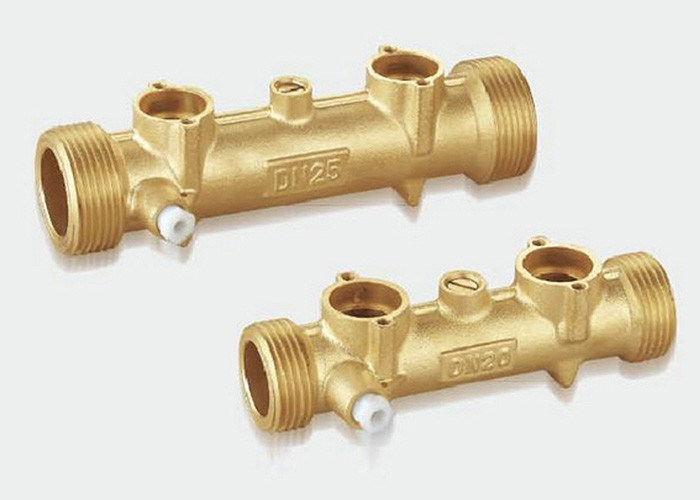

ultrasonic water meter housing brass ultrasonic transducer pipe heat meter dN20
General Introduction

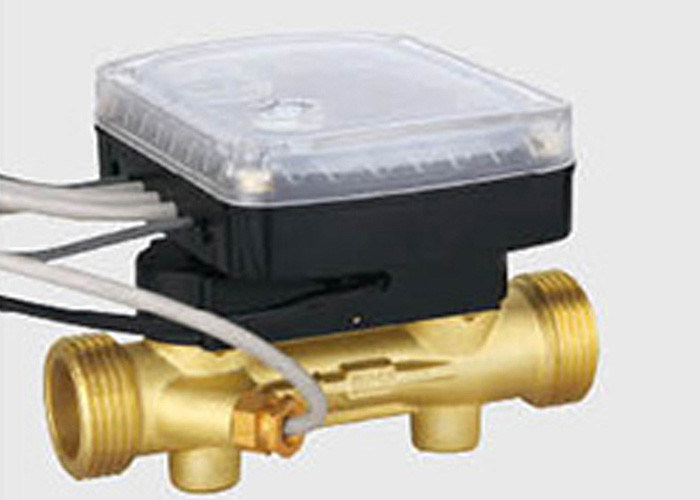

The Ultrasonic heat water meter with Brass Pipe, which can be with a pair of ultrasonic sensors to detect the fluid flow in the pipe. When the ultrasonic wave and liquid flow direction runs in the same or reverse direction, the speed of the ultrasonic wave in liquid may be accelerated or decelerated accordingly. By this principle ,the ultrasonic flow sensor detects the liquid flow speed in the pipe, and thus obtains the flow data for energy metering.
Product Features:
- Good pipe structure ensures small and even velocity gradient
- Reasonable structure of reflecting column will produce swirl
- Good structure of reflecting column will avoid swirl
- Unreasonable pipe structure leads to large velocity gradient
Technical Parameter
Diameter | Tube length (mm) | Thread (inch) | Transducer hole size (mm) | Core (mm) | remarks |
DN15 | 110 | G3/4B | Φ21x9.2mm (17.2x1.5) | - | customized available |
DN20 | 130 | G1B | Φ21x9.2mm 17.2x1.5 | Φ14x46mm |
customized available |
DN25 | 160 | G1-1/4B | Φ21x9.2mm 17.2x1.5 | Φ17x60mm | customized available |
DN32 | 180 | G1-1/2B | Φ21x9.2mm 17.2x1.5 | Φ22.5x60mm | customized available |
DN40 | 200 | G2B | Φ21x9.2mm 17.2x1.5 | Φ28.5x60mm | customized available |
Process equipments
Question and Answers:
-Q: What is the most accurate flow meter, and what is the most popular used water meter?
-A: In terms of accuracy or precision of a flow meter, it depends on the application, a wide range of intelligent flow meters type are for selection: electromagnetic flow meter, ultrasonic flow meter, turbine flow meter, coriolis flow meter, etc. From the point of volumetric water metering, it's mechanical water meter, voumetric water meter, ultrasonic water meter, etc.
