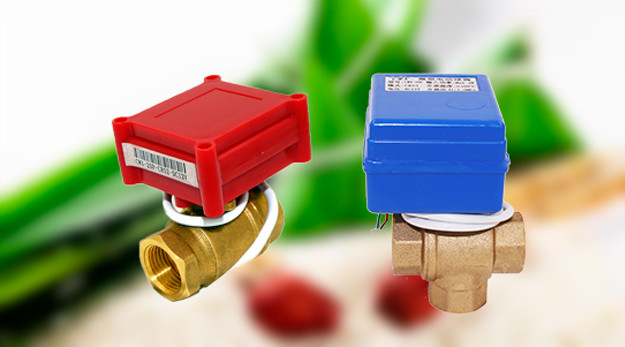

1.0 Mpa Zone Heating Valves 3 Wires 2 Points DN40 Water Flow Control

3 wires 2 points control zone heating valves, hot water flow control valves 95 ℃



Product Description



Our heating zone control valves are available from DN15 to DN32, and many different thread connection ports. This CW25S zone control valve has the manual OPEN/CLOSE function in case of no electricity, lift the manual handle and turn it on or off, and it will get heat when any of the other zones call for heat. They can used for hot water flow controls, priority zoning circulators, or fan controls, central heating and cooling systems.

Features

1. Extreme long service life span ;

2. Manual Override, the valve can be operated when power failure;

3. Mini dimension and position indicator;

4. Good sealing performance, IP65 enclosure.



Application

Advantages

• Sturday valve body with reasonable structure design, and best material to be used

No.	Ours	Normal products
Valve shaft seal	Quadruple seals	Dual seals
Nut seal	Auto super anaerobic glue coating, Consistent torque tightening	Manual anaerobic glue, unevenly, non consistent torque tightening
Seal between valve body and housing	Seal groove	none
Torque	Smoothly and light	Heavy, non consistently
Drainage	Yes	none



Technical data

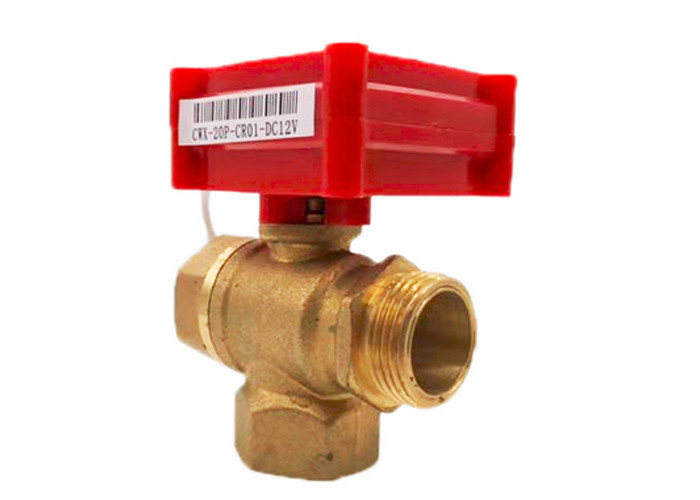

Model	20P-1.0A
Work Amp (mA)	Max 80
Protection	IP65
Power (W)	<2
Operate Pressure (Mpa)	PN10
Torque (NM)	2
Dia range	DN8-32 (Straight); DN15-20 (Tee, three way)
Open/close (S)	Straight: < 7s; Three way: <13s
Work volt. (V)	DC3-6V, DC12V
Media temp (℃)	0-90
Control	CR01, CR02, CR05

Valve body material	Connection port	Diameter	D	L	H	W
			(mm)			(Kg)
Brass	Both female thread full diameter	DN8	8	46	31	0.232
		DN10	8	46	31	0.231
		DN15	15	57	38	0.308
		DN20	15	66	38	0.389
		DN25	20	72	47	0.478
	3-way vertical	DN15	12	63	49	0.31
		DN20	15	66	53	0.367
	Female-male thread	DN15	15	63	38	0.307
		DN20	15	66	38	0.337
		DN32	20	76	50	0.569
	Both male thread	DN15	15	68	38	0.299



Wiring options

• Two wires and reverse polarity (DC3-6V / DC12V)

1. Connecting SW to OPEN , the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSE , the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed)

• Three wires and two control points (DC3-6V / DC12V / DC24V)

1. Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position (fully closed)

Note: AC24V/AC220V can only be used for 50K series electric valves

• Three wires and one control point (DC3-6V/12V)

1. Connecting SW, the valve opens , getting the position ,automatically power off, thevalve remain fully open position

2. Disconnecting SW, the valve close , getting the position ,automatically power off, the valve remains side passes position (fully closed)

Note: When power is DC voltage and Red Wires is “+”,Blue wire is “—”

• Two wires and power off return (DC3-6V/ADC9-24V/AC220V)

1. SW connecting, the valve open, getting the position and the power off automatically, the valve remains fully open/close position

2. SW disconnecting, the valve close, getting the position and power off automatically, the valve remains fully open/close position

• Five wires micro conntroller with signal feedback (DC3-6V/12V)

1. Connecting SW and OPEN, the valve opens, getting the position green wire output the OLS signal, the controller tests the signal OLS, connect SW to STOP, the valve stops and remains fully open position

2. Connecting SW and CLOSE, the valve close, getting the position red wire output the CLS signal, the controller tests the signal CLS, connect SW to STOP, the valve stops and remains fully close position,

Note: Please make sure the signal wires "red", "black" and "green" be connected at first, then connect the power wires " yellow" and "blue".
