Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | NONE |
Model Number: | 8064-1011 |
Minimum Order Quantity: | 1000 pieces |
Price: | USD3.59/piece (>1000pcs) / USD4.31/piece (50-1000 pcs) |
Packaging Details: | box + maste carton + pallet |
Delivery Time: | 15-21 days |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 200000 sets/month |
Work Pressure: | 16 Bar / 1.6 Mpa / 232 Psi / PN16 | Connect Port: | FNPT Both End, FNPT-NPT |
---|---|---|---|
Valve Body Material: | Brass, Stainless Steel SS304, 316 | Product Name: | 3 Way Heating Valves |
Life Cycle: | >100,000 Times | Usage: | Underfloor Heating System, Hydronic Heating System, HVAC |
Temperature Of Media: | Medium Temperature, Normal Temperature, High Temperature, Low Temperature | Media: | Water, Oil, 50% Glycol, Steam |
High Light: | PN16 two port motorised valve,two port motorised valve,PN16 22mm 2 port valve |

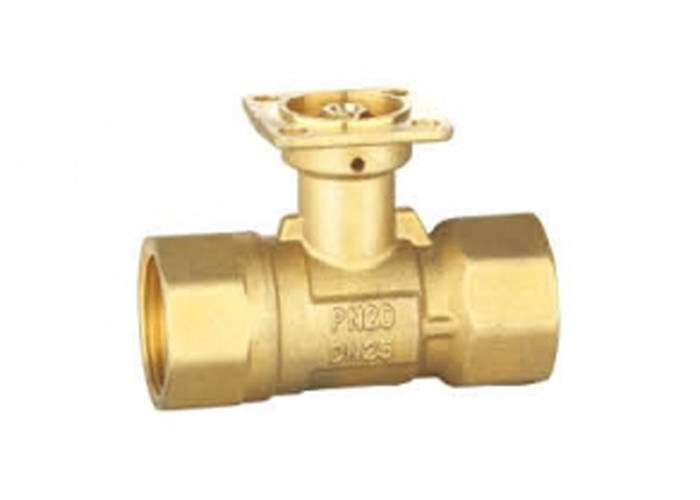

2 port Motorized zone valve,1 inch motorized zone valve, valve body: brass, PN16
Product Description
The electric motorized heating zone valves, are an electrically controlled ball valve, which are used in central heating systems to control the flow of heated water in the home. Our range consists: diameters ranges DN10-DN32, 2 and 3 ports, both end threads: female, male, or female-male.
Application
Advantages
No | Name | Material | Advantage |
1. | O-ring |
Import |
Resistance to high temperature, oil, corrosion, chemicals, Work temp.: —30℃+280℃.Quadruple seals, minimize the risk of leakage. |
2. | Drainage | Drain just in case leakage happens | |
4 | 0-ring | EPDM (red) | Between nut and valve body, extra external leak proof, reduce the possibility of internal leak |
8. | Ball | Brass or SS304 | Finely polished, rack nickel plating (not barrel plating), smooth surface, improved torque performance |
9. | Water proof G | Avoid water into housing, seal between valve body and valve housing |
No | Name | Material | Advantages |
5. | Wall thickness | 2.0mm, PN20 | |
6. | Teflon washer | Import teflon |
1. Import teflon tube, numerical processing to perfectly match with ball surface |
7 | 0-ring | EPDM |
1. Good elasticity, as buffer after Teflon washer to improve seal effect |
