| Place of Origin: | China |
|---|---|
| Brand Name: | Runpaq |
| Certification: | NONE |
| Model Number: | K15-DN20 |
| Minimum Order Quantity: | 1000 pieces |
| Price: | USD2.28/piece (>2000 pieces) USD2.5 / piece (1000 - 2000 pieces) |
| Packaging Details: | carton |
| Delivery Time: | 15-21 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 200000 sets/month |
| Rated Voltage: | DC3.6V | Voltage Range: | DC2.5V - DC5V |
|---|---|---|---|
| Work Current At 3.6V: | <25 MA (23 C) | Current At Max Loading: | About 450 MA |
| Motor: | Electric Ball Valve Motor (#300) | Torque: | 1.8 NM |
| Open / Close Time: | < 10 S | Reduction Ratio: | 2000 : 1 (For DN15, DN20 Motorized Ball Valve) |
| Product Name: | Electric Ball Valve Actuator Motor | Model: | K14 |
| High Light: | dc5V synchron valve motor,DC5V zone valve motor,geared synchron valve motor |
||
synchron valve motor, 5V zone valve motor actuator with geared synchronous motor
Product description

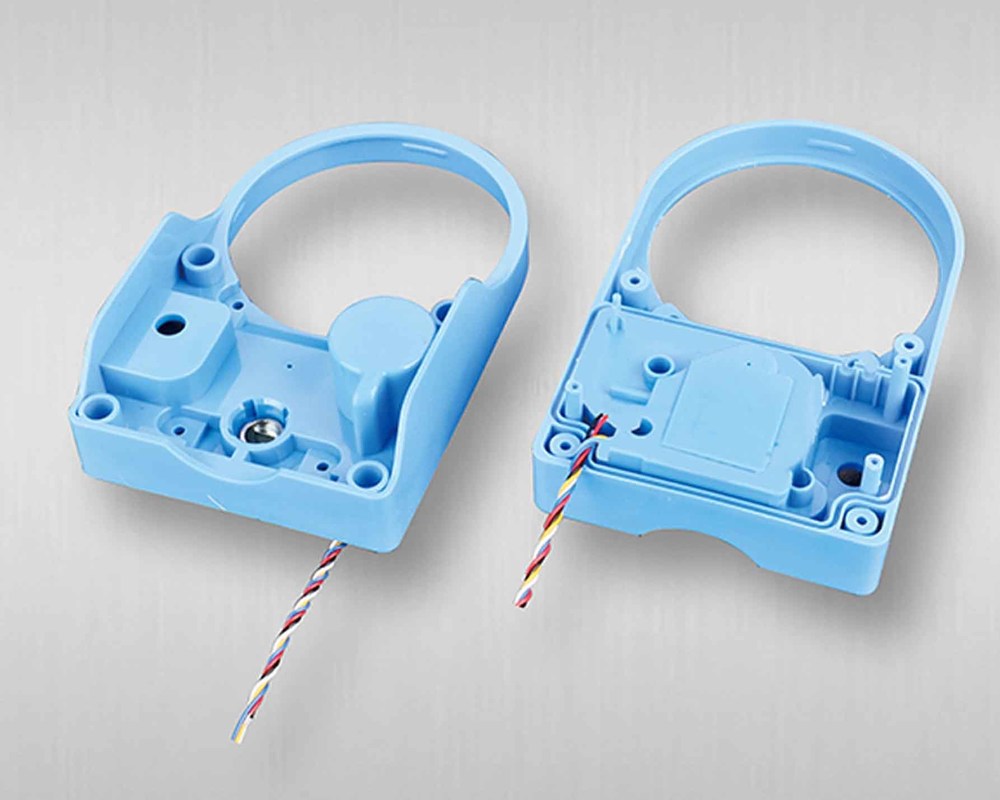

Our electric actuator motor for mini motorized ball valve, is with a reversible synchronous geared motor. It can be attached to irrigation water meter, IC card prepay water meter, heat meter, motorized ball valve to control the electric ball valve open or close.
Technical data-Model K14
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <450 mA (motor #300)
4. Torque: >1.8 NM
5. Open/close time: <10S
6. Velocity reduction ratio: 2200:1
7. Protection: IP66
Wiring definition
| No | Color of wire | Definition |
| 1 | blue | on position signal, valve open |
| 2 | white | on position signal, public |
| 3 | yellow | on position signal, valve close |
| 4 | black | positive (+) |
| 5 | red | negative (-) |
