Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | NONE |
Model Number: | 101-DN20-3 |
Minimum Order Quantity: | 100 pieces |
Price: | USD5.5 (100-1000 pieces ) / USD4.95 (>1000 pieces) |
Packaging Details: | carton + pallet |
Delivery Time: | 20 - 30 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
Supply Ability: | 200000 sets/month |
Diameter: | DN15-DN40 (1/2" To 1-1/2") | Pressure: | PN16 / 1.6 Mpa / 232 Psi / 16 Bar |
---|---|---|---|
Material: | Brass / Stainless Steel SS304 / 316 | Reflect Mirror: | W Reflect, Z Reflect |
Options: | Mini Motorised Ball Valve | Warranty: | 10 Years |
Application: | Ultrasonic Water Meter, Heat Meter, Digital Flow Meter | Name: | Ultrasonic Heat Meter, Ultrasonic Heat Counter |
High Light: | PN16 Water Meter Housing,ultrasonic Water Meter Housing,PN16 ultrasonic heat meter |

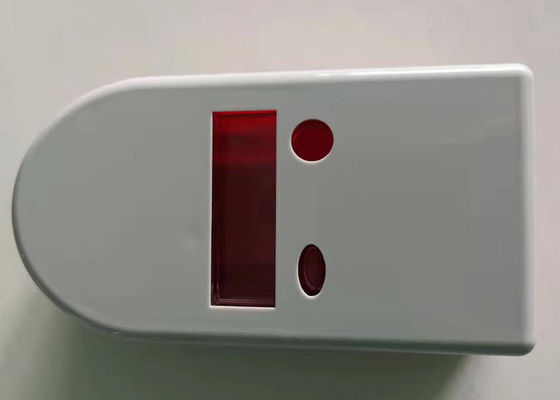

ultrasonic water meter housing, valve, motor actuator without electronics, PN16
General Introduction
With fastly development of Nb-IOT - Internet of Things, the ultrasonic water meter becomes more and more popular in the market. It can help to monitor the water supply system, and reduce waste. When the ultrasonic wave and liquid flow direction runs in the same or reverse direction, the speed of the ultrasonic wave in liquid may be accelerated or decelerated accordingly. By this principle ,the ultrasonic flow sensor detects the liquid flow speed in the pipe, and thus obtains the flow data for energy metering. We produce brass pipe or stainless steel pipe for ultrasonic water flow meter's housing, optional DC motorized valve with actuator for remotely open or close valve.
Product Features:
Technical Parameter
Diameter | Tube length (mm) | Thread (inch) | Transducer hole size (mm) | Core (mm) | remarks |
DN15 | 110 | G3/4B | Φ21x9.2mm (17.2x1.5) | - | customized available |
DN20 | 130 | G1B | Φ21x9.2mm 17.2x1.5 | Φ14x46mm |
customized available |
DN25 | 160 | G1-1/4B | Φ21x9.2mm 17.2x1.5 | Φ17x60mm | customized available |
DN32 | 180 | G1-1/2B | Φ21x9.2mm 17.2x1.5 | Φ22.5x60mm | customized available |
DN40 | 200 | G2B | Φ21x9.2mm 17.2x1.5 | Φ28.5x60mm | customized available |
Process equipments
Question and Answers:
-Q: What is the most accurate flow meter, and what is the most popular used water meter?
-A: In terms of accuracy or precision of a flow meter, it depends on the application, a wide range of intelligent flow meters type are for selection: electromagnetic flow meter, ultrasonic flow meter, turbine flow meter, coriolis flow meter, etc. From the point of volumetric water metering, it's mechanical water meter, voumetric water meter, ultrasonic water meter, etc.
