Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | ISO4064 |
Model Number: | LXH15-1 |
Minimum Order Quantity: | 200 pieces |
Price: | USD34.2 / piece (200-1000 pieces), USD32.6 / piece (>1000 pieces) |
Packaging Details: | box + maste carton + pallet |
Delivery Time: | 40 working days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
Supply Ability: | 20000 sets/month |
Diameter: | DN15, DN20, DN25 | Pressure: | PN16 / 1.6 Mpa / 232 Psi / 16 Bar |
---|---|---|---|
Mounting Direction: | Horizontal Or Vertical | Housing Material: | Brass, Ductile Iron |
Communication: | Amr, Mbus | Valve: | Optional, Mini Motorized Ball Valve |
Name: | Cold Water Meter | Software: | Free |
High Light: | volumetric Residential Smart Water Meter,R160 Residential Smart Water Meter,R160 rotary piston water meter |

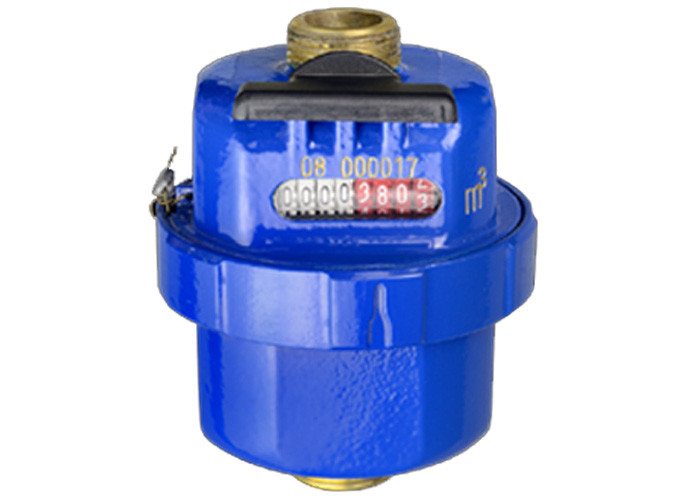

new Residential Smart Water Meter, plastic volumetric water meter Class C, R160
General description
The volumetric water is also called rotary piston water meter, its sanitary design for directly potable water bulk flow meter measurement. The R value is 160 or better. Its features high accuracy, low initial flow, easily read, safety and long service life. Our multi jet water meter is made of brass, plastic or iron as requested, we produce high quality multi jet water meter, it is dry dial type, vane wheel. Available in sizes 15mm to 50 mm with nominal flow rates of Qn 1.5m³/h to Qn 15m³/h. It's for cold water volumetric measurement, or hot water up to 90 ℃.
Key Features:
Operate condition:
Note:
Maximum Permissible Error:
(1) Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.
Data sheet
Description | Unit | Hydraulic data and dimensions | ||
Nominal size | mm(inch) | DN15 (1/2") | DN20(3/4") | |
Overload flow rate (Qs) | m3/h | 2 | 3 | |
Permeanent flow rate (Qp) | m3/h | 1 | 1.5 | |
Transitional flow rate (Qt) | l/h | 80 | 120 | |
Minimum flow rate (Qmin) | l/h | 20 | 30 | |
Min reading | l | 0.05 | 0.05 | |
Max reading | l | 99999.9999 | 99999.9999 | |
Max work pressure | MPa | 1.6 | 1.6 | |
Pressure difference at Qs | Mpa | <0.1 | <0.1 | |
L | mm | 165 | 190 | |
I | mm | 245 | 290 | |
H | mm | 135 | 135 | |
h | mm | 36.5 | 36.5 | |
B | mm | 94 | 94 | |
D | inch | G3/4B | G1B | |
d | inch | R1/2 | R3/4 | |
weight | with connections | kg | 1.49 | 1.75 |
without connections | 1.29 | 1.45 |
Flow curve
Competitive Advantage:
Factory show
