Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | NONE |
Model Number: | 101-DN15-4 |
Minimum Order Quantity: | 100 pieces |
Packaging Details: | carton + pallet |
Delivery Time: | 20 - 30 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
Supply Ability: | 200000 sets/month |
Pipe Diameter: | DN15-DN40 | Pressure: | PN16 / 1.6 Mpa / 232 Psi / 16 Bar |
---|---|---|---|
Material: | Brass / Stainless Steel SS304 | Reflect Mirror: | W Reflect, Z Reflect |
Options: | Mini Motorised Ball Valve | Warranty: | 10 Years |
Application: | Ultrasonic Water Meter, Heat Meter, Digital Flow Meter, Smart Water Meter | Length: | DN15-165 Mm |
High Light: | Brass Pipe flow meter housing,RS485 Brass Flow Meter Housing,40mm Brass Flow Meter Housing |

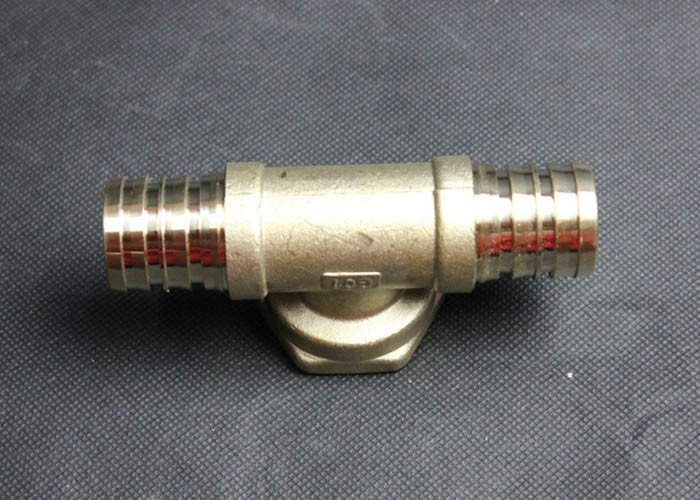

40mm PN16 RS485 Ultrasonic Water Meter Brass Pipe, for IOT smart City
General Introduction
The stainless steel SS304 / Brass ultrasonic flow sensor pipe are designed for ultrasonic heat or cold water meter: convection type for residential DN15-40, or single channel, dual channel for large diameter. We have developed ultrasonic brass pipe: DN20, DN25, DN32, DN40, adopting the popular U-type reflecting structure for convection ultrasonic water meter. With the help of professional simulation software, we have done intensive researches on different structures that may affect the flow field, in order to minimize possible swirl and turbulence, thus ensure reliable transmission of ultrasonic signals.
Product Features:
Technical Parameter
Diameter | Tube length (mm) | Thread (inch) | Transducer hole size (mm) | Core (mm) | remarks |
DN15 | 110 | G3/4B | Φ21x9.2mm (17.2x1.5) | - | customized available |
DN20 | 130 | G1B | Φ21x9.2mm 17.2x1.5 | Φ14x46mm |
customized available |
DN25 | 160 | G1-1/4B | Φ21x9.2mm 17.2x1.5 | Φ17x60mm | customized available |
DN32 | 180 | G1-1/2B | Φ21x9.2mm 17.2x1.5 | Φ22.5x60mm | customized available |
DN40 | 200 | G2B | Φ21x9.2mm 17.2x1.5 | Φ28.5x60mm | customized available |
Package
Process equipments
Question and Answers:
-Q: What is the most accurate flow meter, and what is the most popular used water meter?
-A: In terms of accuracy or precision of a flow meter, it depends on the application, a wide range of intelligent flow meters type are for selection: electromagnetic flow meter, ultrasonic flow meter, turbine flow meter, coriolis flow meter, etc. From the point of volumetric water metering, it's mechanical water meter, voumetric water meter, ultrasonic water meter, etc.
