Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | CE |
Model Number: | 10A11 |
Minimum Order Quantity: | 1000 pieces |
Packaging Details: | foam + box |
Delivery Time: | 10-15 days |
Payment Terms: | T/T, L/C, Western Union, D/P |
Supply Ability: | 100,000 / month |

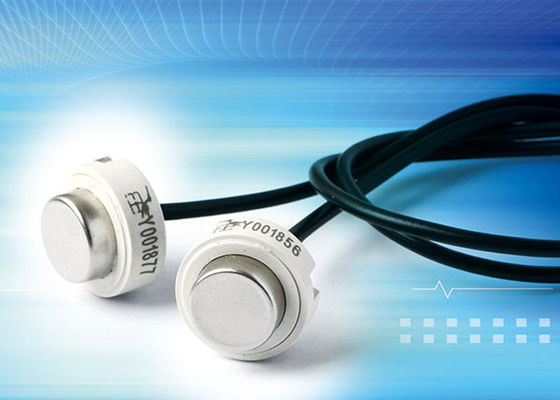

Descriptio: | Ceramic Piezo Transducer | Center Frequency: | 975 +/- 30 HZ |
---|---|---|---|
Static Capacity: | 500PF +/- 20% | Resonance Impedance: | < 100 Ω |
Transmit Beam Angle: | 5 - 10 Degree | Receive Sensitivity: | >120 Mv (half Wave) |
Emit Surface: | Dia. 15 Mm | Mounting Surface: | Dia. 21 Mm |
Pressure: | > 3.0 Mpa | Wiring: | Center |
Wiring Type: | Shield Wire | Hous Material: | SS304+polymer |
High Light: | Shield Wire Waterproof Ultrasonic Sensor,SS304 Piezoelectric Ceramic Sensor,Ultrasonic Welding Piezoelectric Ceramic Sensor |
General description:
The range of our piezoelectric transducers are developed by us. The ultrasonic transducers are widely used in the fields of: such as ultrasonic cleaning, welding, testing, B-ultrasound medical treatment, beauty equipment, acoustic transducers, micro-drives, ultrasonic flowmeters and so on. Design, development and production of piezoelectric ceramic products. Based on our advanced technology and production process.
Product data sheet
Technical parameters | |||||
Model | BX17 | Center frequency | 975 + 30 KHz | Static capacity | 600 PF + 20% |
Resonance impedance | <110 Ω | Protection | IP68 | Work temp. | < 90 ℃ |
Pressure | >3.0 Mpa | Transmit beam angle | 5 – 10 |
Receive sensitivity |
>250 mv (half wave) |
Housing material | SS304 | Emit surface | Dia. 17 mm | Mounting surface | Dia. 21 mm |
Seal |
Epoxy encapsulation |
Wiring | Center | Wire type |
Dia. 2.5 mm dual core |
Technical parameters | |||||
Model | 17A | Center frequency | 975 + 30 KHz | Static capacity | 500 PF + 20% |
Resonance impedance | <110 Ω | Protection | IP68 | Work temp. | < 90 ℃ |
Pressure | >3.0 Mpa | Transmit beam angle | 5 – 10 |
Receive sensitivity |
>250 mv (half wave) |
Housing material | Brass | Emit surface | Dia. 17 mm | Mounting surface | Dia. 21 mm |
Seal |
Epoxy encapsulation |
Wiring | Center | Wire type |
Dia. 2.5 mm dual core |
Parameters
Different options:
