Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | NONE |
Model Number: | 8064-1012 |
Minimum Order Quantity: | 1000 pieces |
Packaging Details: | box + maste carton + pallet |
Delivery Time: | 15-21 days |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 200000 sets/month |
Pressure: | PN16 / 16 Bar / 1.6 Mpa / 232 Psi | Port Of Connect: | Female Thread, Male Thread, Male-female Thread |
---|---|---|---|
Material Of Construction: | SS304, Brass, | Product Name: | 3 Way Heating Valves |
Life Cycle: | >100,000 Times | Usage: | Underfloor Heating System, Hydronic Heating System, HVAC |
Temperature Of Media: | Medium Temperature, Normal Temperature, High Temperature, Low Temperature | Media: | Water, Oil, 50% Glycol, Steam |
High Light: | DC5V Motorized Ball Valve,PN16 Motorized Ball Valve,EPDM Ring Motorized Ball Valve |

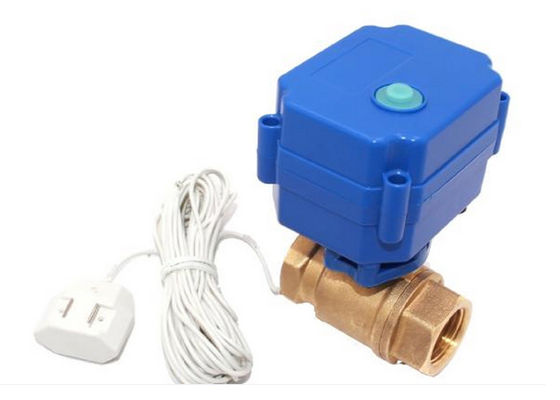

dC5V motorized ball valve, two way thread port, thermal sensor
Product Description
The DC5V mini motorized ball valve, are made of brass or stainless steel SS304. It's widely used in the zone control, HVAC, water utility, three thread ports or two way ball valve. It's with optional leak detection, and holes for thermal sensor RTD, pressure sensor, temperature sensor. The operation pressure is PN10 or PN16.
Application
Advantages
No | Name | Material | Advantage |
1. | O-ring |
Import |
Resistance to high temperature, oil, corrosion, chemicals, Work temp.: —30℃+280℃.Quadruple seals, minimize the risk of leakage. |
2. | Drainage | Drain just in case leakage happens | |
4 | 0-ring | EPDM (red) | Between nut and valve body, extra external leak proof, reduce the possibility of internal leak |
8. | Ball | Brass or SS304 | Finely polished, rack nickel plating (not barrel plating), smooth surface, improved torque performance |
9. | Water proof G | Avoid water into housing, seal between valve body and valve housing |
No | Name | Material | Advantages |
5. | Wall thickness | 2.0mm, PN20 | |
6. | Teflon washer | Import teflon |
1. Import teflon tube, numerical processing to perfectly match with ball surface |
7 | 0-ring | EPDM |
1. Good elasticity, as buffer after Teflon washer to improve seal effect |
