Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | NONE |
Model Number: | K18-DN15 |
Minimum Order Quantity: | 1000 pieces |
Packaging Details: | carton |
Delivery Time: | 15-21 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
Supply Ability: | 200000 sets/month |
Voltage Rating: | 3.6VDC | Work Voltage: | 2.5V - 5V DC |
---|---|---|---|
Empty Run Current: | <25 MA (23 C) By Motor #320 | Current At Full Loading: | About 550 MA |
Motor: | DC5V #320 Motor | Torque: | 1.8 NM (1400:1) / 2NM (2000:1) / 3NM (4200:1) |
Open / Close Time: | < 8 S (1400:1) / 10 S (2000:1) / 3NM (4200:1) | Reduction Ratio: | 1400:1 & 2000 : 1 (For DN15 , DN20), 4200:1 For DN25 |
Product Name: | Geared Synchoronous Motor Actuator, Mini Motorised Valve Actuator | Model: | K18 |
High Light: | DC2.5V Ball Valve Motor,Torque 1.8NM Ball Valve Motor,550mA Flow Control Ball Valve Motor |

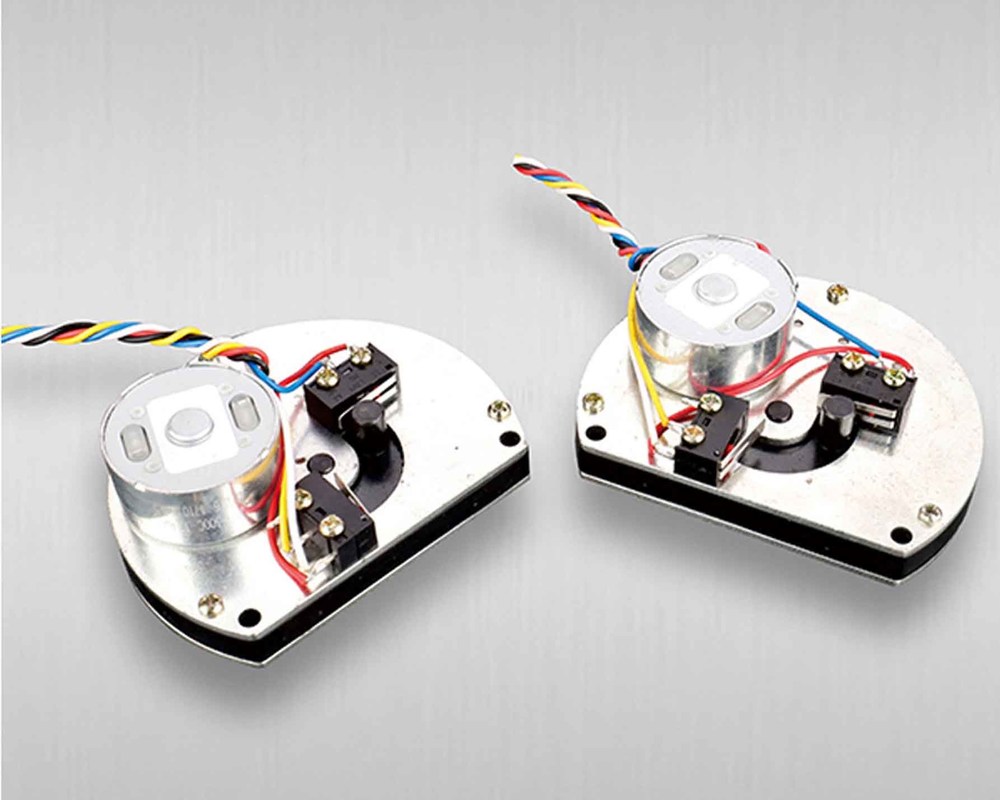

ball valve actuator motor, DC2.5V, Torque 1.8NM flow control
Product description
The DC2.5-5V motor actuator are designed for water flow control or heat control in water utility, HVAC, such as mini motorized ball valve , smart water meter with ball valve, zone valve, heat control valve.The ball valve diameter range: DN15, DN20, DN25, DN32, DN40, up to DN80.The torque range from 1.8NM to 4.5 NM.
Technical data-Model K18
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <550 mA (motor #320)
4. Torque: >1.8 NM (1400:1), >2NM (2000:1), >2.5NM (3400:1), >3NM (4200:1)
5. Open/close time: <8S (1400:1), <10S (2000:1), <15S (3400:1), <18S (4200:1)
6. Velocity reduction ratio: (1400:1), (2000:1), (3400:1), (4200:1)
7. Protection: 0
Wiring definition
No | Color of wire | Definition |
1 | blue | on position signal, valve open |
2 | white | on position signal, public |
3 | yellow | on position signal, valve close |
4 | black | positive (+) |
5 | red | negative (-) |
