Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | NONE |
Model Number: | K23 |
Minimum Order Quantity: | 1000 pieces |
Packaging Details: | carton |
Delivery Time: | 15-21 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
Supply Ability: | 200000 sets/month |
Work Volt.: | Lithium Battery 3.6V | Function: | Adjustable Ball Valve Openness |
---|---|---|---|
Empty Run Current: | <25 MA (23 C) (motor #300) | Current At Full Loading: | About 450 MA |
Motor: | DC5V #300 Motor | Torque: | 1.8 NM (2400:1) |
Open / Close Time: | < 10 S (2400:1) | Reduction Ratio: | 2400 : 1 (For DN15 , 20) |
Protection: | IP67 | Model: | K23 |
High Light: | 1.8NM Zone Valve Motor,DN15 Zone Valve Motor,450mA Adjustable Zone Valve Motor |

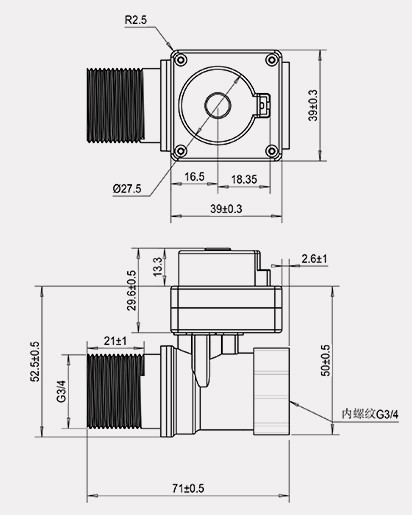

DN15 ball valve actuator motor, dC2.5V 1.8NM to open / close
Product description
The newly developed IP67 DC2.5V motor actuators for ball valve open or close, are available with different torque, speed reduction ratio and rotate speed. The actuator motor is well designed for the motorized ball valve open or close. The valve diameter range: DN15, DN20, DN25, DN32, DN40, up to DN80.The torque range from 1.8NM to 4.5 NM. The water flow control or heat control in water utility, HVAC, such as mini motorized ball valve , smart water meter with ball valve, zone valve, heat control, need be made through a mini motorized ball valve.
Technical data-Model K23
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <450 mA (motor #300)
4. Torque: >2.5 NM (3500:1)
5. Open/close time: <13 S (3500:1)
6. Velocity reduction ratio: (3500:1)
7. Protection: IP67
Wiring definition
No | Color of wire | Definition |
1 | blue | on position signal, valve open |
2 | white | on position signal, public |
3 | yellow | on position signal, valve close |
4 | black | positive (+) |
5 | red | negative (-) |
Production overview
