Green Building, Low Carbon Emission
| Place of Origin: | China |
|---|---|
| Brand Name: | Runpaq |
| Certification: | NONE |
| Model Number: | K31 |
| Minimum Order Quantity: | 1000 pieces |
| Packaging Details: | carton |
| Delivery Time: | 15-21 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 200000 sets/month |
| Normal Voltage: | Lithium Battery 2.5VDC-5V DC | Application: | Open / Close Brass Ball Valve |
|---|---|---|---|
| Empty Run Current: | <25 MA (23 C) | Current At Full Loading: | About 550 MA (motor #320) |
| Motor: | DC2.5V-DC5V | Torque: | 1.8 NM (2000:1) |
| Open / Close Time: | < 10 S (2000:1) | Reduction Ratio: | 2000 : 1 (For DN15 - 20 Ball Valve); |
| Protection: | 0 | Model: | K31 |
| Highlight: | DC5V Electric Motor Actuator,Electric Motor Actuator 9NM,HVAC Automation Electric Motor Actuator |
||

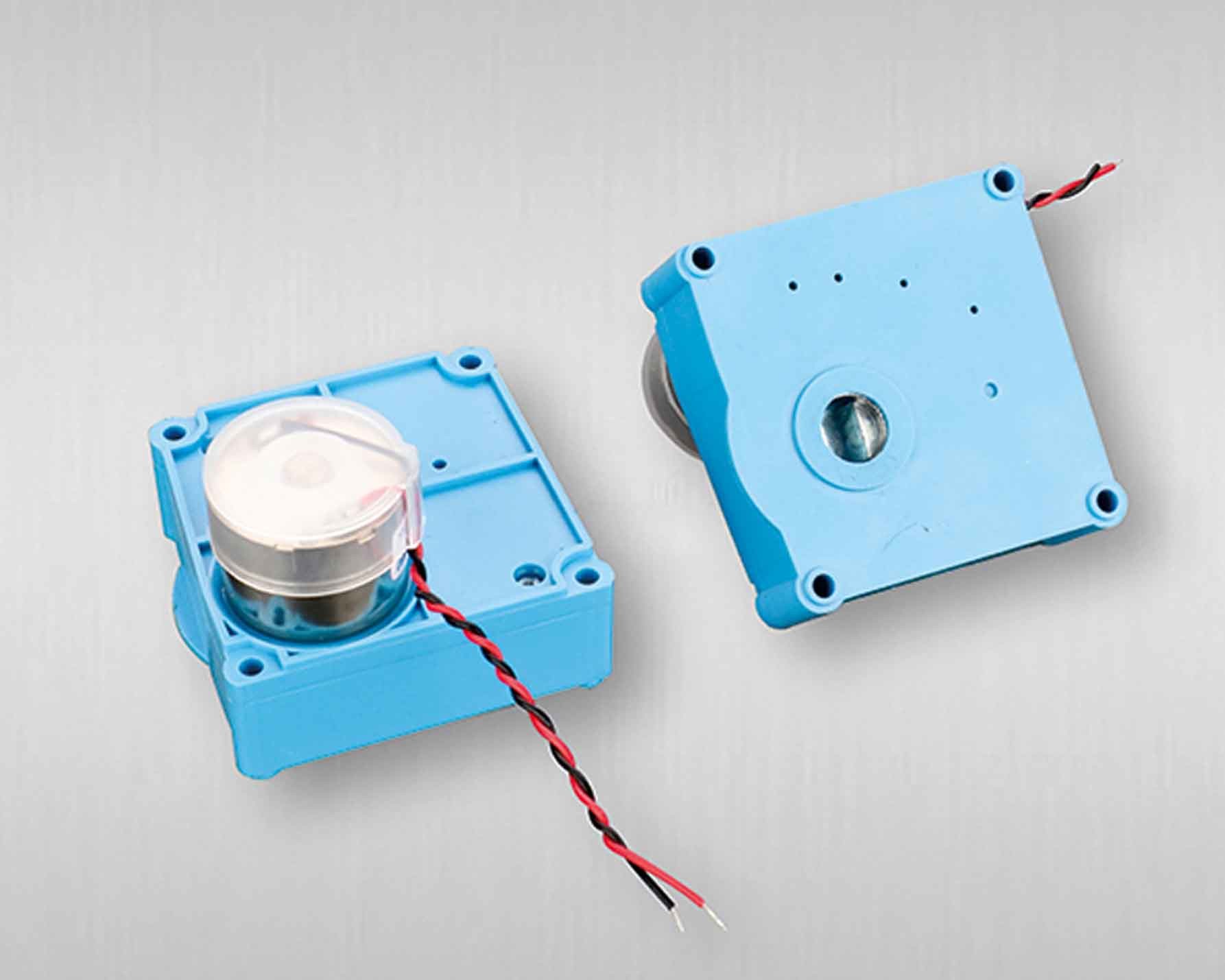

DC5V electric motor actuator for 1/2" two way brass ball valve,
Product description
The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close. The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio.

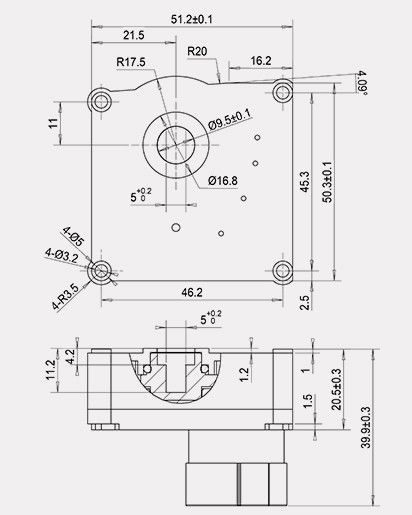

Technical data-Model K31
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <550 mA (motor #320)
4. Torque: >1.8 NM (2000:1)
5. Open/close time: <10 S (2000:1)
6. Velocity reduction ratio: for DN15, DN20 ball valve (2000:1)
7. Protection: 0
Wiring definition
| No | Color of wire | Definition |
| 4 | black | positive (+) |
| 5 | red | negative (-) |
