Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | NONE |
Model Number: | K37 |
Minimum Order Quantity: | 1000 pieces |
Packaging Details: | carton |
Delivery Time: | 15-21 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
Supply Ability: | 200000 sets/month |
Normal Voltage: | Lithium Battery DC2.5V-5VDC | Application: | Open / Close Ball Valve |
---|---|---|---|
Empty Run Current: | <25 MA (23 C) (motor #300) | Current At Full Loading: | About 450mA |
Motor: | DC2.5V #300 Motor | Torque: | 4.5NM (3500:1) |
Open / Close Time: | < 25 S (6500:1) | Reduction Ratio: | 6500 : 1 (For DN15 - 32 Ball Valve); |
Protection: | 0 | Model: | K37 |
High Light: | 4.5NM Motorised Valve Actuator,450mA Motorised Valve Actuator,4.5NM Motorised Valve Actuator |

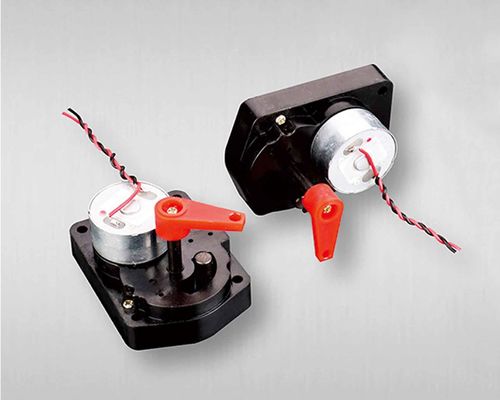

4.5NM DC actuator motor with manual handle, for zone valve
Product description
This DC2.5V - 5V electric actuator motor, has max torque up to 4.5 NM at 6500:1 reduction ratio, also quickly open 1.7NM at reduction: 1500:1. It has an manual handle to open or close the valve. The motor acuator can be used for open and close the brass ball valve in flow control, heating ball valve, zone valve, etc.
Technical data-Model K37
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <450 mA (motor #300)
4. Torque: >4.5 NM (6500:1)
5. Open/close time: <25 S (6500:1)
6. Velocity reduction ratio: for DN15, DN20, DN25, DN32 ball valve (6500:1)
7. Protection: 0
Wiring definition
No | Color of wire | Definition |
1 | blue | on position signal, valve open |
2 | white | on position signal, public |
3 | yellow | on position signal, valve close |
4 | black | positive (+) |
5 | red | negative (-) |
