Place of Origin: | China |
---|---|
Brand Name: | Runpaq |
Certification: | NONE |
Model Number: | 8011-9003-1 |
Minimum Order Quantity: | 1000 pieces |
Packaging Details: | box + maste carton + pallet |
Delivery Time: | 15-21 days |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 200000 sets/month |
Name: | Heating Zone Valve | Diameter: | 1/2" - 2" |
---|---|---|---|
Valve Body Material: | Stainless Steel, Brass, Bronze | Work Ressure: | PN16 / 16 Bar / 1.6 Mpa / 232 Psi |
Life Cycle: | >100,000 Times | Usage: | Underfloor Heating System, Hydronic Heating System, HVAC |
Temperature Of Media: | Medium Temperature, Normal Temperature, High Temperature, Low Temperature | Media: | Water, Oil, 50% Glycol, Steam |
High Light: | Electric Motorised Zone Valve,1/2" Diameter Motorised Zone Valve,Convectors Heating Zone Valve |

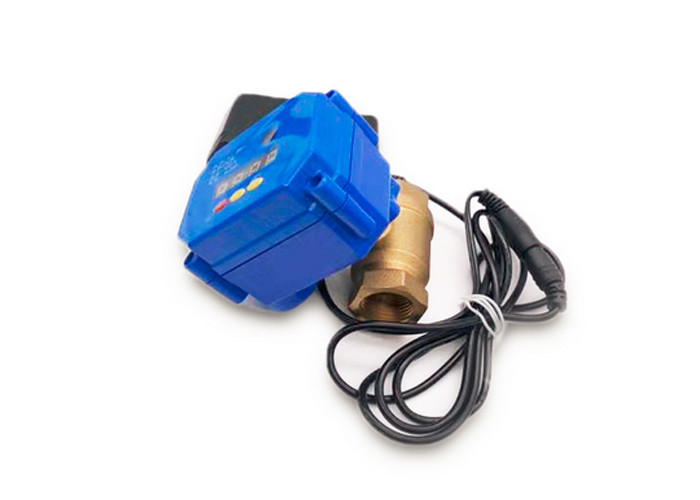

dC2.5V motorized zone valve, flow control ball valve actuator
Product Description
The ball valves are driven by DC2.5V electric actuator motor to fully open or close a motorized ball valve. The openness of valve can be in a certain angle. We manufacture a wide range of ball valves, magnetic lockable valve in brass or stainless steel. The productions of ball valve bodies are made on hot pressed moulding equipment, then finely machined on CNC, numerical milling, lathed. The life cycle is more than 100,000 times. Pressure rating is PN16. We can offer customized production on these brass ball valves. Among them, the mini motorized ball valve are designed for flow control, zone control, heating control, smart water meter.
Application
Advantages
No | Name | Material | Advantage |
1. | O-ring |
Import |
Resistance to high temperature, oil, corrosion, chemicals, Work temp.: —30℃+280℃.Quadruple seals, minimize the risk of leakage. |
2. | Drainage | Drain just in case leakage happens | |
4 | 0-ring | EPDM (red) | Between nut and valve body, extra external leak proof, reduce the possibility of internal leak |
8. | Ball | Brass or SS304 | Finely polished, rack nickel plating (not barrel plating), smooth surface, improved torque performance |
9. | Water proof G | Avoid water into housing, seal between valve body and valve housing |
No | Name | Material | Advantages |
5. | Wall thickness | 2.0mm, PN20 | |
6. | Teflon washer | Import teflon |
1. Import teflon tube, numerical processing to perfectly match with ball surface |
7 | 0-ring | EPDM |
1. Good elasticity, as buffer after Teflon washer to improve seal effect |
