| Place of Origin: | China |
|---|---|
| Brand Name: | Runpaq |
| Certification: | NONE |
| Model Number: | 1002 |
| Minimum Order Quantity: | 1000 pieces |
| Packaging Details: | box + maste carton + pallet |
| Delivery Time: | 15-21 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 200000 sets/month |
| Name: | Brass Ball Valve Motor | Pressure: | 16bar |
|---|---|---|---|
| Valve Body Material: | Stainless Steel, Brass, Bronze | Diameter: | 1/2" - 2" |
| Life Cycle: | >100,000 Times | Usage: | Underfloor Heating System, Hydronic Heating System, HVAC |
| Temperature Of Media: | Medium Temperature, Normal Temperature, High Temperature, Low Temperature | Media: | Water, Oil, 50% Glycol, Steam |
| High Light: | 2 Way Brass Motorised Zone Valve,DN15 Motorised Zone Valve,DC2.5V Battery Motorised Zone Valve |
||

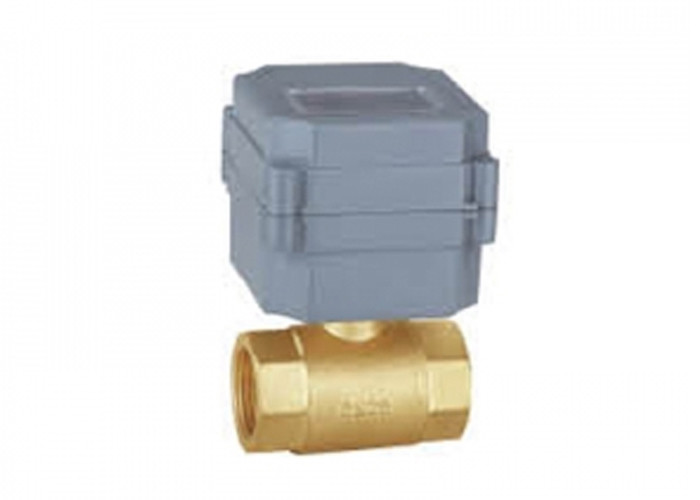

2 Way brass ball valve, dC2.5V battery drive, DN15-DN40, PN16
Product Description
This DC2.5V battery drive brass ball valve, is one of our wide range of ball valves, magnetic lockable valve in brass or stainless steel. Among them, the mini motorized ball valve are designed for flow control, zone control, heating control, smart water meter. The ball valves are driven by DC2.5V electric actuator motor to fully open or close a motorized ball valve. The openness of valve can be in a certain angle. The productions of ball valve bodies are made on hot pressed moulding equipment, then finely machined on CNC, numerical milling, lathed. The life cycle is more than 100,000 times. Pressure rating is PN16. We can offer customized production on these brass ball valves.
Application
Advantages
| No | Name | Material | Advantage |
| 1. | O-ring |
Import |
Resistance to high temperature, oil, corrosion, chemicals, Work temp.: —30℃+280℃.Quadruple seals, minimize the risk of leakage. |
| 2. | Drainage | Drain just in case leakage happens | |
| 4 | 0-ring | EPDM (red) | Between nut and valve body, extra external leak proof, reduce the possibility of internal leak |
| 8. | Ball | Brass or SS304 | Finely polished, rack nickel plating (not barrel plating), smooth surface, improved torque performance |
| 9. | Water proof G | Avoid water into housing, seal between valve body and valve housing |
| No | Name | Material | Advantages |
| 5. | Wall thickness | 2.0mm, PN20 | |
| 6. | Teflon washer | Import teflon |
1. Import teflon tube, numerical processing to perfectly match with ball surface |
| 7 | 0-ring | EPDM |
1. Good elasticity, as buffer after Teflon washer to improve seal effect |
